ATL : TROPICAL DEPRESSION BONNIE - RECON

[brunota2003]

Made it to 51

000
URNT15 KNHC 231053
AF305 0403A BONNIE HDOB 49 20100723
104330 2526N 08003W 8425 01604 0128 +171 +165 069022 025 022 001 00
104400 2525N 08002W 8431 01599 0134 +162 //// 067024 027 021 003 01
104430 2524N 08000W 8425 01604 0132 +164 //// 076030 031 021 002 01
104500 2523N 07959W 8428 01602 0131 +167 //// 078029 029 025 001 01
104530 2522N 07958W 8429 01599 0130 +167 +163 079031 032 028 001 00
104600 2521N 07957W 8431 01593 0127 +167 +166 073030 035 025 007 03
104630 2520N 07956W 8450 01575 0126 +172 +161 069029 032 023 005 03
104700 2519N 07954W 8400 01623 0126 +167 +167 075025 030 026 008 00
104730 2518N 07953W 8431 01594 0122 +174 +156 079027 027 021 002 00
104800 2516N 07952W 8429 01596 0123 +170 +164 079027 028 023 000 00
104830 2515N 07951W 8430 01595 0122 +174 +159 078026 026 024 001 00
104900 2514N 07950W 8430 01593 0120 +176 +153 076024 024 024 001 00
104930 2513N 07948W 8434 01592 0118 +175 +166 074024 024 022 003 03
105000 2512N 07947W 8431 01592 0118 +175 +169 074026 027 022 003 03
105030 2511N 07946W 8432 01591 0117 +175 +173 073026 027 023 002 03
105100 2510N 07945W 8430 01591 0114 +177 +170 068028 029 023 000 03
105130 2509N 07944W 8430 01590 0112 +177 +171 068028 029 023 000 00
105200 2508N 07942W 8432 01586 0110 +177 +171 065027 029 /// /// 03
105230 2507N 07941W 8427 01587 0112 +166 //// 057025 025 021 006 05
105300 2506N 07940W 8432 01581 //// +154 //// 051033 035 033 017 05
$$
;

[brunota2003]

Wooo! Found ya, Bonnie! Lowest pressure 1007.1 mb

000
URNT15 KNHC 231103
AF305 0403A BONNIE HDOB 50 20100723
105330 2504N 07939W 8429 01579 //// +155 //// 051028 032 041 023 05
105400 2503N 07937W 8450 01564 0112 +168 //// 057024 025 030 009 05
105430 2502N 07936W 8426 01587 0107 +176 +164 062025 025 025 001 00
105500 2501N 07935W 8433 01580 0105 +177 +162 061026 026 025 000 00
105530 2500N 07934W 8433 01580 0105 +175 +172 062024 025 024 001 00
105600 2459N 07932W 8433 01577 0104 +175 //// 066023 024 022 000 01
105630 2458N 07931W 8429 01577 0102 +175 //// 060023 024 021 000 01
105700 2456N 07930W 8429 01580 0099 +176 +175 055022 023 020 001 00
105730 2455N 07929W 8428 01577 0098 +178 //// 059018 019 023 003 01
105800 2454N 07927W 8430 01574 //// +157 //// 058018 020 034 013 05
105830 2453N 07926W 8433 01571 //// +164 //// 059018 019 030 009 05
105900 2452N 07925W 8431 01568 //// +163 //// 060015 018 029 008 05
105930 2450N 07924W 8433 01567 0088 +169 //// 048008 010 029 008 01
110000 2449N 07923W 8430 01571 0083 +186 //// 008006 007 020 003 01
110030 2447N 07922W 8432 01568 0082 +189 +184 326007 008 014 001 00
110100 2446N 07921W 8430 01574 0084 +195 +179 293004 006 005 000 03
110130 2446N 07919W 8425 01577 0083 +193 +180 228001 002 000 002 03
110200 2447N 07918W 8432 01567 0078 +193 +182 189005 007 001 001 03
110230 2448N 07916W 8430 01568 0075 +194 +181 191009 011 000 001 03
110300 2449N 07915W 8429 01566 0071 +201 +176 187015 016 005 000 00
$$
;

[brunota2003]

Looks like Recon decided to go play around in the center and make sure it is for real!

000
URNT15 KNHC 231113
AF305 0403A BONNIE HDOB 51 20100723
110330 2450N 07913W 8430 01566 0072 +201 +169 179020 021 011 001 00
110400 2451N 07912W 8432 01565 0073 +204 +159 177023 024 018 001 00
110430 2452N 07910W 8430 01569 0080 +193 +175 170024 025 023 000 03
110500 2452N 07908W 8431 01569 0084 +193 +177 172021 023 /// /// 03
110530 2451N 07908W 8430 01570 0087 +187 +185 171017 020 /// /// 03
110600 2450N 07909W 8422 01579 0085 +188 +178 177018 019 022 001 03
110630 2450N 07911W 8429 01572 0079 +196 +174 173020 021 017 002 03
110700 2449N 07912W 8429 01569 0074 +203 +160 184017 017 019 001 03
110730 2449N 07914W 8430 01568 0073 +202 +174 182014 015 015 000 03
110800 2449N 07916W 8429 01568 0076 +196 +179 183008 010 004 000 03
110830 2449N 07918W 8429 01571 0075 +200 +175 163005 007 002 001 03
110900 2449N 07920W 8433 01566 0075 +200 +177 121001 002 003 000 00
110930 2449N 07922W 8431 01570 0078 +196 +181 053002 003 006 001 00
111000 2449N 07923W 8433 01572 0084 +195 +182 351006 007 004 000 03
111030 2447N 07924W 8428 01575 0080 +197 +181 308007 008 008 001 03
111100 2446N 07924W 8425 01581 0080 +203 +168 263009 011 017 000 00
111130 2444N 07924W 8433 01574 0086 +201 +153 245010 010 013 002 03
111200 2443N 07923W 8428 01580 0086 +202 +153 248008 009 /// /// 03
111230 2444N 07922W 8430 01577 0087 +202 +150 240009 009 /// /// 03
111300 2445N 07922W 8425 01581 0081 +204 +154 233007 007 005 000 03
$$
;

[brunota2003]

Eh? Recon heading home I guess?

000
URNT15 KNHC 231123
AF305 0403A BONNIE HDOB 52 20100723
111330 2446N 07924W 8441 01562 0079 +202 +174 253004 005 008 000 00
111400 2447N 07925W 8200 01814 0077 +193 +160 251001 002 /// /// 03
111430 2449N 07926W 7827 02215 0078 +168 +143 100003 004 /// /// 03
111500 2450N 07927W 7513 02558 0076 +144 +127 087008 010 /// /// 03
111530 2452N 07929W 7188 02935 0082 +116 //// 070009 011 /// /// 05
111600 2453N 07930W 6872 03316 0077 +102 +100 061008 010 025 007 03
111630 2455N 07931W 6580 03683 0084 +079 //// 042009 011 /// /// 05
111700 2456N 07932W 6304 04038 0086 +055 +046 051007 014 030 009 05
111730 2458N 07933W 6046 04386 0071 +047 +025 330003 004 022 003 03
111800 2459N 07934W 5871 04589 0039 +035 +013 098003 004 018 005 03
111830 2500N 07936W 5674 04869 0046 +017 +004 127003 004 021 005 03
111900 2500N 07936W 5674 04869 0048 +008 -010 121004 004 018 004 00
111930 2502N 07940W 5333 05384 0290 -008 -028 135006 007 021 000 00
112000 2503N 07942W 5191 05604 0306 -018 -041 122008 009 020 001 00
112030 2504N 07944W 5057 05810 0324 -029 -067 126007 010 022 002 03
112100 2504N 07946W 4914 06037 0341 -046 -074 128004 007 024 002 00
112130 2505N 07948W 4771 06272 0356 -056 -100 082003 004 026 002 03
112200 2506N 07951W 4643 06492 0368 -069 -108 086001 002 029 005 03
112230 2507N 07953W 4543 06642 0372 -085 -125 115003 003 018 024 03
112300 2508N 07955W 4444 06817 0386 -092 -193 091004 004 030 006 03
$$
;

[brunota2003]

Dropsonde in the center...1008 millibars with 11 knot winds, so 1007?

Product: Air Force Temp Drop (Dropsonde) Message (UZNT13 KNHC)
Transmitted: 23rd day of the month at 11:21Z
Aircraft: Air Force Aircraft (Last 3 digits of the tail number are 305)
Storm Number: 03
Storm Name: Bonnie (flight in the North Atlantic basin)
Mission Number: 4
Observation Number: 20

Part A...

Date: Near the closest hour of 11Z on the 23rd day of the month
Highest Mandatory Level For Which Wind Was Reported: 850mb
Coordinates: 24.8N 79.4W
Location: 68 miles (109 km) to the ESE (108°) from Key Largo, FL, USA.
Marsden Square: 080 (About)

Level Geo. Height Air Temp. Dew Point Wind Direction Wind Speed
1008mb (29.77 inHg) Sea Level (Surface) 26.8°C (80.2°F) 25.7°C (78.3°F) 40° (from the NE) 11 knots (13 mph)
1000mb 71m (233 ft) 26.2°C (79.2°F) 25.4°C (77.7°F) 45° (from the NE) 12 knots (14 mph)
925mb 757m (2,484 ft) 22.4°C (72.3°F) 22.0°C (71.6°F) 25° (from the NNE) 5 knots (6 mph)
850mb 1,494m (4,902 ft) 19.8°C (67.6°F) 18.3°C (64.9°F) 30° (from the NNE) 3 knots (3 mph)

Information About Radiosonde:
- Launch Time: 11:09Z
- About Sonde: A descending radiosonde tracked automatically by satellite navigation with no solar or infrared correction.

Remarks Section...

Splash Location: 24.81N 79.37W
Splash Time: 11:11Z

Release Location: 24.81N 79.37W
Release Time: 11:09:38Z

Splash Location: 24.81N 79.36W
Splash Time: 11:11:34Z

Mean Boundary Level Wind (mean wind in the lowest 500 geopotential meters of the sounding):
- Wind Direction: 55° (from the NE)
- Wind Speed: 10 knots (12 mph)

Deep Layer Mean Wind (average wind over the depth of the sounding):
- Wind Direction: 55° (from the NE)
- Wind Speed: 6 knots (7 mph)
- Depth of Sounding: From 843mb to 1007mb

Average Wind Over Lowest Available 150 geopotential meters (gpm) of the sounding:
- Lowest 150m: 159 gpm - 9 gpm (522 geo. feet - 30 geo. feet)
- Wind Direction: 50° (from the NE)
- Wind Speed: 11 knots (13 mph)

Sounding Software Version: AEV 20801

Part B: Data For Significant Levels...

Significant Temperature And Relative Humidity Levels...
Level Air Temperature Dew Point
1008mb (Surface) 26.8°C (80.2°F) 25.7°C (78.3°F)
850mb 19.8°C (67.6°F) 18.3°C (64.9°F)
843mb 19.4°C (66.9°F) 18.0°C (64.4°F)

Significant Wind Levels...
Level Wind Direction Wind Speed
1008mb (Surface) 40° (from the NE) 11 knots (13 mph)
978mb 55° (from the NE) 11 knots (13 mph)
966mb 65° (from the ENE) 7 knots (8 mph)
870mb 50° (from the NE) 2 knots (2 mph)
843mb 25° (from the NNE) 3 knots (3 mph)
The highest wind observed in the "Significant Wind Levels" section is noted in bold.

[brunota2003]

Here is your VDM:

000
URNT12 KNHC 231125
VORTEX DATA MESSAGE AL032010
A. 23/11:09:10Z
B. 24 deg 49 min N
079 deg 20 min W
C. 850 mb 1499 m
D. 23 kt
E. 307 deg 10 nm
F. 070 deg 34 kt
G. 311 deg 46 nm
H. 1008 mb
I. 17 C / 1527 m
J. 20 C / 1522 m
K. 18 C / NA
L. NA
M. NA
N. 12345 / 8
O. 0.02 / 0.05 nm
P. AF305 0403A BONNIE OB 19
MAX FL WIND 41 KT NE QUAD 09:51:50Z
MAX FL TEMP 21 C 088 / 7 NM FROM FL CNTR


Product: Air Force Vortex Message (URNT12 KNHC)
Transmitted: 23rd day of the month at 11:25Z
Aircraft: Air Force Aircraft (Last 3 digits of the tail number are 305)
Storm Number & Year: 03L in 2010
Storm Name: Bonnie (flight in the North Atlantic basin)
Mission Number: 4
Observation Number: 19
A. Time of Center Fix: 23rd day of the month at 11:09:10Z
B. Center Fix Coordinates: 24°49'N 79°20'W (24.8167N 79.3333W)
B. Center Fix Location: 72 miles (115 km) to the ESE (106°) from Key Largo, FL, USA.
C. Minimum Height at Standard Level: 1,499m (4,918ft) at 850mb
D. Estimated (by SFMR or visually) Maximum Surface Wind: 23kts (~ 26.5mph)
E. Location of the Estimated Maximum Surface Wind: 10 nautical miles (12 statute miles) to the NW (307°) of center fix
F. Maximum Flight Level Wind Inbound: From 70° at 34kts (From the ENE at ~ 39.1mph)
G. Location of Maximum Flight Level Wind Inbound: 46 nautical miles (53 statute miles) to the NW (311°) of center fix
H. Minimum Sea Level Pressure: 1008mb (29.77 inHg)
I. Maximum Flight Level Temp & Pressure Altitude Outside Eye: 17°C (63°F) at a pressure alt. of 1,527m (5,010ft)
J. Maximum Flight Level Temp & Pressure Altitude Inside Eye: 20°C (68°F) at a pressure alt. of 1,522m (4,993ft)
K. Dewpoint Temp (collected at same location as temp inside eye): 18°C (64°F)
K. Sea Surface Temp (collected at same location as temp inside eye): Not Available
L. Eye Character: Not Available
M. Eye Shape: Not Available
N. Fix Determined By: Penetration, Radar, Wind, Pressure and Temperature
N. Fix Level: 850mb
O. Navigation Fix Accuracy: 0.02 nautical miles
O. Meteorological Accuracy: 0.05 nautical miles
Remarks Section:
Maximum Flight Level Wind: 41kts (~ 47.2mph) in the northeast quadrant at 9:51:50Z
Maximum Flight Level Temp: 21°C (70°F) which was observed 7 nautical miles to the E (88°) from the flight level center

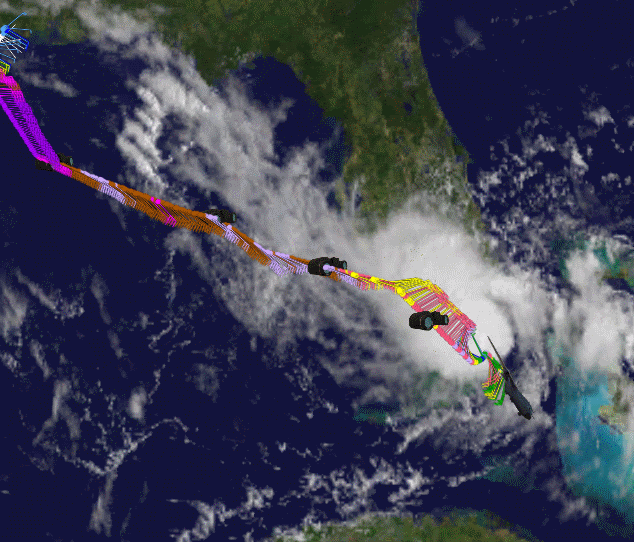

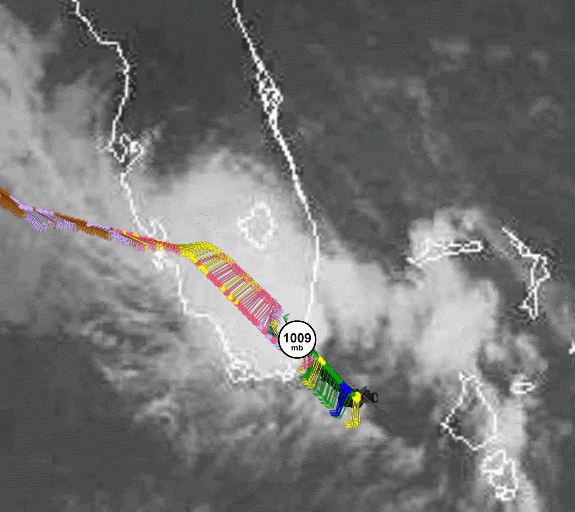

Here is your last image with the VDM location:

[poof121]

000
URNT15 KNHC 231310
AF306 0503A BONNIE HDOB 07 20100723
130100 2813N 08728W 3758 08058 0438 -215 -241 116036 036 014 000 00
130130 2812N 08726W 3759 08059 0439 -215 -243 117036 036 011 000 00
130200 2812N 08724W 3759 08059 0439 -215 -245 118035 036 014 000 00
130230 2811N 08721W 3760 08059 0440 -215 -247 117035 036 012 001 00
130300 2810N 08719W 3758 08063 0441 -215 -248 118035 035 013 001 00
130330 2810N 08716W 3759 08063 0442 -214 -250 119035 035 013 001 00
130400 2809N 08714W 3759 08064 0443 -215 -251 119034 034 017 000 00
130430 2808N 08712W 3759 08064 0444 -212 -253 120034 034 015 000 00
130500 2808N 08709W 3759 08063 0443 -210 -254 121034 034 014 001 00
130530 2807N 08707W 3759 08063 0442 -210 -255 120034 034 014 000 00
130600 2806N 08705W 3759 08060 0441 -210 -257 119033 033 015 000 00
130630 2805N 08702W 3759 08060 0441 -210 -259 121034 034 013 000 00
130700 2805N 08700W 3758 08062 0441 -210 -266 121034 035 015 000 00
130730 2804N 08657W 3758 08062 0441 -210 -284 122033 033 014 001 00
130800 2803N 08655W 3759 08061 0441 -210 -293 123033 034 016 000 00
130830 2803N 08652W 3759 08060 0441 -210 -300 124034 034 015 000 00
130900 2802N 08650W 3759 08061 0441 -210 -305 126033 034 016 000 00
130930 2801N 08648W 3759 08061 0442 -210 -309 127034 034 014 001 00
131000 2800N 08645W 3759 08064 0443 -210 -314 128034 035 015 000 00
131030 2800N 08643W 3758 08066 0445 -210 -319 128035 036 017 000 00
$$
;

Another plane on its way... Gotta go in 10 minutes, can someone else do it?

[artist]

I can post it for about 15-20 minutes

000
URNT15 KNHC 231341
AF306 0503A BONNIE HDOB 10 20100723
133100 2733N 08505W 3758 08081 0460 -200 -246 125035 036 016 000 00
133130 2732N 08502W 3759 08081 0461 -200 -247 126035 035 017 000 00
133200 2732N 08500W 3759 08082 0462 -200 -246 125034 035 018 000 00
133230 2731N 08457W 3759 08082 0462 -200 -247 123034 034 018 000 00
133300 2731N 08455W 3758 08084 0463 -200 -243 124033 033 019 000 00
133330 2730N 08452W 3758 08083 0463 -199 -243 128031 032 017 000 00
133400 2730N 08450W 3765 08076 0463 -195 -243 134032 032 018 000 00
133430 2730N 08447W 3757 08089 0465 -195 -253 134034 035 008 001 03
133500 2728N 08445W 3761 08085 0468 -193 -253 133034 035 016 001 00
133530 2727N 08443W 3758 08089 0468 -190 -251 133037 038 017 000 00
133600 2726N 08441W 3758 08090 0468 -190 -253 133036 037 015 001 00
133630 2725N 08439W 3755 08098 0469 -189 -247 134037 037 016 001 00
133700 2724N 08437W 3758 08088 0467 -188 -222 132036 037 016 000 00
133730 2722N 08435W 3758 08085 0465 -191 -231 132034 035 018 000 00
133800 2721N 08433W 3759 08089 0468 -189 -255 135037 038 019 000 00
133830 2720N 08431W 3761 08084 0467 -189 -256 136037 037 018 001 00
133900 2719N 08429W 3758 08089 0467 -189 -238 136036 037 019 000 00
133930 2717N 08427W 3759 08087 0468 -190 -236 137036 036 018 000 00
134000 2716N 08425W 3759 08088 0468 -189 -241 139035 036 018 000 00
134030 2715N 08423W 3761 08087 0469 -191 -241 135035 036 018 000 00
$$
;

[artist]

000
URNT15 KNHC 231350
AF306 0503A BONNIE HDOB 11 20100723
134100 2714N 08420W 3759 08089 0469 -189 -239 136035 036 018 000 00
134130 2712N 08418W 3758 08090 0468 -191 -239 137035 036 019 000 00
134200 2711N 08416W 3761 08085 0468 -190 -239 136036 036 020 000 00
134230 2710N 08414W 3757 08093 0468 -190 -238 136035 035 020 001 00
134300 2709N 08412W 3759 08088 0468 -190 -238 133035 035 020 001 00
134330 2707N 08410W 3759 08088 0468 -190 -236 132034 034 020 001 00
134400 2706N 08408W 3759 08088 0468 -190 -235 131033 033 020 000 00
134430 2705N 08406W 3759 08088 0469 -190 -236 129033 034 021 000 00
134500 2704N 08404W 3758 08091 0469 -190 -234 130032 033 020 000 00
134530 2702N 08402W 3759 08089 0469 -190 -230 133032 033 021 000 00
134600 2701N 08400W 3759 08090 0470 -191 -233 135033 034 018 001 03
134630 2700N 08357W 3760 08090 0470 -191 -231 136033 035 019 001 03
134700 2700N 08355W 3757 08094 0469 -190 -232 130032 033 021 000 00
134730 2659N 08352W 3758 08092 0469 -185 -226 121034 035 022 001 00
134800 2659N 08350W 3758 08089 0467 -185 -212 120035 035 024 000 00
134830 2658N 08348W 3761 08084 0468 -185 -246 118033 035 026 003 00
134900 2658N 08345W 3759 08088 0469 -189 -238 119032 032 027 003 00
134930 2657N 08343W 3757 08091 0468 -190 -221 117032 033 027 002 00
135000 2657N 08340W 3758 08088 0468 -193 //// 112030 030 026 002 01
135030 2656N 08338W 3760 08090 0470 -192 -235 111032 032 027 001 00
$$

[artist]

000
URNT15 KNHC 231400
AF306 0503A BONNIE HDOB 12 20100723
135100 2656N 08335W 3755 08097 0469 -191 -242 112034 034 026 002 00
135130 2655N 08333W 3762 08083 0468 -190 -224 111036 036 025 003 00
135200 2655N 08330W 3761 08086 0468 -190 -210 109036 036 025 001 00
135230 2654N 08328W 3758 08092 0469 -187 -212 105036 036 024 001 00
135300 2653N 08325W 3759 08091 0471 -184 -230 108036 037 024 000 00
135330 2653N 08323W 3759 08092 0472 -185 -234 109035 036 024 001 00
135400 2652N 08321W 3759 08092 0473 -180 -209 110037 038 025 000 00
135430 2652N 08318W 3759 08092 0473 -180 -214 108038 039 025 000 00
135500 2651N 08316W 3758 08094 0473 -185 -223 107036 037 025 000 00
135530 2651N 08313W 3762 08089 0474 -185 -215 108037 037 025 001 00
135600 2650N 08311W 3758 08095 0474 -184 -215 110037 038 023 001 00
135630 2650N 08309W 3758 08095 0473 -184 -205 112037 037 026 000 00
135700 2649N 08306W 3759 08094 0474 -182 -212 112036 036 024 002 00
135730 2649N 08304W 3760 08092 0474 -180 -238 106034 035 025 001 00
135800 2648N 08301W 3758 08097 0474 -182 -200 104033 034 025 001 00
135830 2648N 08259W 3759 08095 0474 -178 -208 109033 033 027 001 00
135900 2647N 08256W 3759 08095 0476 -180 -237 110033 034 027 001 00
135930 2647N 08254W 3757 08101 0478 -179 -211 112033 034 028 001 00
140000 2646N 08251W 3764 08092 0481 -173 -182 113034 035 029 000 00
140030 2646N 08249W 3866 07902 0476 -162 -208 114034 035 029 001 00
$$

[artist]

000
URNT15 KNHC 231410
AF306 0503A BONNIE HDOB 13 20100723
140100 2645N 08246W 3966 07707 0463 -151 -217 113035 036 028 000 00
140130 2644N 08244W 4103 07459 0454 -134 -209 115033 034 028 002 00
140200 2644N 08241W 4274 07151 0436 -121 -205 118029 030 /// /// 03
140230 2643N 08238W 4460 06810 0410 -101 -203 116027 028 /// /// 03
140300 2643N 08236W 4639 06512 0391 -089 -198 114023 024 026 001 03
140330 2642N 08233W 4826 06201 0370 -072 -189 109026 026 024 002 03
140400 2642N 08230W 4894 06093 0361 -065 -177 111025 026 026 001 00
140430 2641N 08228W 5028 05881 0351 -053 -162 109024 024 026 001 00
140500 2640N 08225W 5205 05613 0337 -037 -151 105024 025 026 002 03
140530 2640N 08223W 5407 05311 0320 -023 -144 101025 026 /// /// 03
140600 2639N 08220W 5617 05007 0164 -010 -134 102026 026 /// /// 03
140630 2639N 08218W 5837 04700 0167 +009 -124 101025 025 /// /// 03
140700 2638N 08215W 6061 04395 0163 +030 -115 102025 025 /// /// 03
140730 2638N 08213W 6295 04085 0161 +050 -104 101026 026 /// /// 03
140800 2637N 08211W 6526 03788 0164 +065 -093 106025 026 /// /// 03
140830 2637N 08208W 6686 03584 0160 +074 -080 109022 023 066 001 03
140900 2636N 08206W 6701 03561 0160 +075 -067 106023 023 /// /// 03
140930 2636N 08204W 6699 03563 0160 +072 -051 106022 022 089 000 03
141000 2635N 08201W 6802 03443 0168 +078 -038 099022 023 /// /// 03
141030 2635N 08159W 6984 03226 0168 +093 -029 089023 024 /// /// 03
$$

[artist]

000
URNT15 KNHC 231420
AF306 0503A BONNIE HDOB 14 20100723
141100 2634N 08157W 7212 02961 0172 +109 -021 086020 021 /// /// 03
141130 2634N 08155W 7450 02692 0177 +125 -009 081020 021 /// /// 03
141200 2633N 08152W 7695 02421 0181 +139 -003 078022 024 /// /// 03
141230 2633N 08150W 7959 02138 0185 +155 -000 077024 025 /// /// 03
141300 2632N 08148W 8220 01861 0190 +162 +025 076022 023 /// /// 03
141330 2631N 08146W 8426 01637 0184 +164 +040 075020 020 /// /// 03
141400 2630N 08145W 8447 01613 0178 +165 +052 074020 021 /// /// 03
141430 2629N 08143W 8531 01530 0180 +168 +061 075022 023 /// /// 03
141500 2627N 08141W 8713 01349 0178 +180 +069 073022 023 /// /// 03
141530 2626N 08140W 8925 01145 0180 +191 +077 067022 024 /// /// 03
141600 2624N 08138W 9079 00992 0176 +199 +086 072024 025 /// /// 03
141630 2623N 08137W 9100 00971 0174 +200 +095 070025 026 /// /// 03
141700 2622N 08135W 9097 00972 0173 +198 +103 068025 025 /// /// 03
141730 2620N 08134W 9098 00969 0169 +200 +109 065024 024 /// /// 03
141800 2619N 08132W 9098 00969 0168 +200 +115 062023 024 /// /// 03
141830 2618N 08131W 9098 00967 0166 +200 +120 059023 023 /// /// 03
141900 2616N 08129W 9098 00966 0165 +200 +124 060024 024 /// /// 03
141930 2615N 08127W 9098 00966 0166 +196 +128 059025 026 /// /// 03
142000 2613N 08126W 9098 00966 0166 +198 +130 060026 026 /// /// 03
142030 2612N 08124W 9099 00965 0164 +200 +132 060026 026 /// /// 03
$$
;

[artist]

000
URNT15 KNHC 231430
AF306 0503A BONNIE HDOB 15 20100723
142100 2611N 08123W 9098 00965 0163 +200 +133 059026 027 /// /// 03
142130 2609N 08121W 9098 00964 0163 +200 +134 058027 027 /// /// 03
142200 2608N 08120W 9099 00963 0161 +200 +135 059027 027 /// /// 03
142230 2607N 08118W 9097 00964 0160 +200 +136 058026 027 /// /// 03
142300 2605N 08116W 9098 00963 0160 +200 +137 056024 025 /// /// 03
142330 2604N 08115W 9149 00920 0166 +203 +140 054024 025 /// /// 03
142400 2602N 08113W 9237 00832 0160 +210 +143 051025 025 /// /// 03
142430 2601N 08112W 9249 00819 0159 +210 +147 051025 026 /// /// 03
142500 2559N 08110W 9248 00820 0160 +209 +151 051024 025 /// /// 03
142530 2558N 08109W 9249 00820 0160 +210 +154 050024 025 /// /// 03
142600 2557N 08107W 9248 00820 0160 +210 +157 051025 025 /// /// 03
142630 2555N 08105W 9250 00819 0159 +210 +160 052024 025 /// /// 03
142700 2554N 08104W 9249 00819 0157 +212 +162 052026 026 /// /// 03
142730 2553N 08102W 9249 00820 0157 +210 +163 052026 027 /// /// 03
142800 2551N 08101W 9248 00820 0158 +210 +165 050026 026 /// /// 03
142830 2550N 08059W 9250 00818 0156 +210 +166 047025 025 /// /// 03
142900 2548N 08058W 9249 00818 0155 +209 +167 042025 026 /// /// 03
142930 2547N 08056W 9247 00815 0152 +207 +168 041026 027 /// /// 03
143000 2545N 08054W 9251 00813 0153 +207 +169 042027 027 /// /// 03
143030 2544N 08053W 9246 00816 0152 +205 +170 041027 027 /// /// 03
$$
;

[artist]

Atlantic USAF High-Density Observations
--------------------------------------------------------------------------------


000
URNT15 KNHC 231440
AF306 0503A BONNIE HDOB 16 20100723
143100 2543N 08051W 9250 00810 0151 +205 +170 040026 027 /// /// 03
143130 2541N 08050W 9248 00813 0149 +207 +168 041027 028 /// /// 03
143200 2540N 08048W 9250 00811 0151 +204 +167 040029 030 /// /// 03
143230 2538N 08046W 9247 00811 0150 +202 +164 031031 032 /// /// 03
143300 2537N 08045W 9248 00810 0148 +203 +160 027030 030 /// /// 03
143330 2535N 08043W 9250 00807 0145 +209 +155 025029 031 /// /// 03
143400 2534N 08041W 9248 00809 0146 +205 +152 017025 027 /// /// 03
143430 2532N 08040W 9248 00805 0147 +193 +152 017030 033 /// /// 03
143500 2531N 08038W 9247 00805 0140 +211 +148 015030 032 /// /// 03
143530 2529N 08036W 9251 00799 0138 +207 +146 005029 031 /// /// 03
143600 2528N 08035W 9251 00799 0135 +208 +148 350028 030 /// /// 03
143630 2526N 08033W 9248 00797 0131 +214 +152 349032 033 /// /// 03
143700 2524N 08031W 9252 00792 0129 +211 +157 351031 032 /// /// 03
143730 2523N 08029W 9252 00786 0126 +203 +162 341025 028 /// /// 03
143800 2523N 08027W 9248 00790 0122 +206 +166 331022 022 /// /// 03
143830 2523N 08025W 9252 00779 0118 +207 +168 329021 022 /// /// 03
143900 2524N 08023W 9249 00782 0114 +214 +167 317019 020 /// /// 03
143930 2525N 08021W 9263 00766 0109 +218 +166 298017 017 /// /// 03
144000 2526N 08019W 9256 00766 0108 +203 +164 296012 015 /// /// 03
144030 2527N 08018W 9248 00770 0103 +203 +162 334015 019 030 006 00
$$
;

[CrazyC83]

URNT15 KNHC 231450
AF306 0503A BONNIE HDOB 17 20100723
144100 2528N 08017W 9234 00774 0091 +206 +161 331008 016 030 005 00
144130 2530N 08016W 9248 00758 0082 +232 +161 132019 027 022 002 03
144200 2531N 08015W 9247 00763 0082 +240 +166 137032 034 /// /// 03
144230 2530N 08014W 9259 00755 0086 +241 +174 153029 030 032 002 00
144300 2529N 08013W 9230 00785 0091 +231 +181 162029 029 027 001 00
144330 2528N 08012W 9244 00779 0099 +226 +186 176028 029 031 010 03
144400 2526N 08011W 9243 00783 0107 +217 +190 183020 025 030 001 00
144430 2525N 08009W 9248 00783 0112 +215 +192 169019 019 021 002 00
144500 2523N 08008W 9250 00785 0115 +215 +194 179018 020 022 001 00
144530 2522N 08006W 9250 00786 0119 +216 +195 187019 020 023 002 00
144600 2521N 08005W 9248 00791 0121 +215 +197 195018 018 022 002 00
144630 2519N 08003W 9251 00790 0122 +216 +198 196019 019 023 001 00
144700 2518N 08002W 9249 00792 0119 +232 +199 196021 022 021 003 00
144730 2516N 08000W 9253 00788 0121 +227 +200 202020 023 022 003 00
144800 2515N 07959W 9247 00798 0125 +223 +202 202020 021 023 002 00
144830 2513N 07957W 9250 00797 0127 +222 +203 201020 020 022 002 00
144900 2512N 07956W 9248 00799 0128 +223 +203 201018 019 023 001 00
144930 2510N 07955W 9250 00799 0129 +222 +202 192017 018 023 001 00
145000 2509N 07953W 9248 00802 0131 +221 +202 196017 017 022 001 00
145030 2508N 07952W 9249 00802 0134 +219 +201 197019 020 022 001 00
$$
;

Center at 25.5N 80.3W. BTW, based on a tweet from Jim Cantore, Fowey Rocks reported a 36 kt sustained wind.

[artist]

000
URNT15 KNHC 231450
AF306 0503A BONNIE HDOB 17 20100723
144100 2528N 08017W 9234 00774 0091 +206 +161 331008 016 030 005 00
144130 2530N 08016W 9248 00758 0082 +232 +161 132019 027 022 002 03
144200 2531N 08015W 9247 00763 0082 +240 +166 137032 034 /// /// 03
144230 2530N 08014W 9259 00755 0086 +241 +174 153029 030 032 002 00
144300 2529N 08013W 9230 00785 0091 +231 +181 162029 029 027 001 00
144330 2528N 08012W 9244 00779 0099 +226 +186 176028 029 031 010 03
144400 2526N 08011W 9243 00783 0107 +217 +190 183020 025 030 001 00
144430 2525N 08009W 9248 00783 0112 +215 +192 169019 019 021 002 00
144500 2523N 08008W 9250 00785 0115 +215 +194 179018 020 022 001 00
144530 2522N 08006W 9250 00786 0119 +216 +195 187019 020 023 002 00
144600 2521N 08005W 9248 00791 0121 +215 +197 195018 018 022 002 00
144630 2519N 08003W 9251 00790 0122 +216 +198 196019 019 023 001 00
144700 2518N 08002W 9249 00792 0119 +232 +199 196021 022 021 003 00
144730 2516N 08000W 9253 00788 0121 +227 +200 202020 023 022 003 00
144800 2515N 07959W 9247 00798 0125 +223 +202 202020 021 023 002 00
144830 2513N 07957W 9250 00797 0127 +222 +203 201020 020 022 002 00
144900 2512N 07956W 9248 00799 0128 +223 +203 201018 019 023 001 00
144930 2510N 07955W 9250 00799 0129 +222 +202 192017 018 023 001 00
145000 2509N 07953W 9248 00802 0131 +221 +202 196017 017 022 001 00
145030 2508N 07952W 9249 00802 0134 +219 +201 197019 020 022 001 00
$$
;

[Dave]

[HenkL]

URNT12 KNHC 231503
VORTEX DATA MESSAGE AL032010
A. 23/14:41:20Z
B. 25 deg 29 min N
080 deg 17 min W
C. 925 mb 761 m
D. 31 kt
E. 218 deg 3 nm
F. 017 deg 33 kt
G. 277 deg 20 nm
H. EXTRAP 1009 mb
I. 21 C / 764 m
J. 24 C / 765 m
K. 16 C / NA
L. NA
M. NA
N. 1345 / 9
O. 0.02 / 1 nm
P. AF306 0503A BONNIE OB 05
MAX OUTBOUND AND MAX FL WIND 34 KT NE QUAD 14:42:10Z
SLP EXTRAP FROM 925 MB
;

[artist]

000
URNT15 KNHC 231501
AF306 0503A BONNIE HDOB 18 20100723
145100 2506N 07950W 9248 00804 0135 +212 +201 195018 019 020 002 00
145130 2505N 07949W 9249 00802 0136 +210 +200 196017 017 021 002 00
145200 2503N 07947W 9248 00804 0139 +211 +197 196016 017 020 001 00
145230 2502N 07946W 9260 00794 0139 +216 +195 202016 016 018 002 00
145300 2501N 07945W 9258 00793 0135 +216 +193 196016 016 017 001 00
145330 2500N 07944W 9247 00805 0136 +215 +192 194015 016 013 004 00
145400 2458N 07942W 9249 00804 0138 +215 +191 193014 015 020 005 00
145430 2457N 07941W 9251 00799 0136 +217 +191 188012 015 026 007 00
145500 2456N 07940W 9263 00792 0141 +208 +190 198011 013 038 019 00
145530 2455N 07939W 9245 00804 0143 +189 +186 201013 013 049 030 00
145600 2454N 07938W 9249 00805 0146 +190 +179 199013 014 041 019 00
145630 2453N 07937W 9248 00808 0146 +195 +172 205013 014 031 009 00
145700 2452N 07936W 9248 00808 0149 +187 +165 209016 016 032 009 00
145730 2451N 07934W 9248 00808 0149 +190 +161 208017 019 028 006 00
145800 2449N 07933W 9254 00803 0146 +206 +159 187022 023 022 002 00
145830 2448N 07932W 9246 00811 0146 +205 +158 186023 024 023 002 00
145900 2447N 07931W 9248 00808 0142 +213 +161 190022 022 022 003 03
145930 2448N 07930W 9256 00802 0142 +215 +167 181023 024 /// /// 03
150000 2450N 07930W 9244 00813 0142 +215 +175 176023 023 022 003 03
150030 2451N 07931W 9245 00810 0142 +209 +182 178023 024 024 010 03
$$
;

[Dave]
